£1,850.00–£7,450.00Price range: £1,850.00 through £7,450.00
Sunsynk AC battery charger, designed to store generated electricity in a home battery bank.
SunSynk battery pack 5.12kwh is (IP65 rated) with the W5.3 (IP65 rated). This system can use multiple batteries to store energy from solar PV panels or overnight low cost electricity schemes.
In this link we offer the Sunsynk AC battery charger unit c/w an optional range of lithium battery packs, designed to provide various amounts of battery storage using low cost energy.
The system has several options that can be set in such a way that the energy captured will only go to household services and not back to the national grid.
Linking this Sunsynk AC charger to an existing household solar inverter, will allow the household to tandem connect the Sunsynk AC charger side by side. This will allow excess power generated by original solar panels to be directed into battery storage facility. This can then be used when needed at any time of the day or night.
This system can charge up to 20kwh storage using 4 number 5kwh wall mounted or rack batteries using low tariff overnight electricity to charge facility.Each one of our battery storage systems are produced to match the needs of our customers.
Designed to provide 230v solar storage power when needed across the UK.
Matched to meet with homeowners’ requirements.
This system can be used with:
Existing solar panels to store excess generated solar energy
Low tariff overnight energy to store energy into batteries

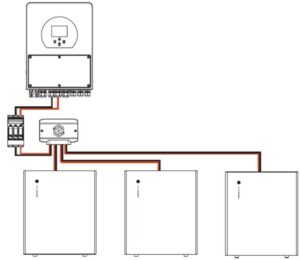

It is possible to connect one battery or several batteries to enable up to 20kwh of storage for the home needs.
Solar will charge batteries during sunlight times. Overnight charging at reduced prices. This will provide Power storage throughout the year.
Mechanically designed for an easy installation process.
The AC inverter also has the ability to use cheep electricity from the national grid connection to charge linked battery pack. Once the battery has been fully charged the system can then provide low cost power at times when needed.
£860.00–£1,950.00Price range: £860.00 through £1,950.00Select options
This product has multiple variants. The options may be chosen on the product page
AC charger and battery
£1,850.00 – £7,450.00Price range: £1,850.00 through £7,450.00
Sunsynk AC battery charger, designed to store generated electricity in a home battery bank.
SunSynk battery pack 5.12kwh is (IP65 rated) with the W5.3 (IP65 rated). This system can use multiple batteries to store energy from solar PV panels or overnight low cost electricity schemes.
Dragons Breath Solar battery storage system PDF
3.5kwh LITHIUM STACKING BATTERY DATA SHEET
5.12kwh SUNSYNK BATTERY DATA SHEET
W5.3 SUNSYNK BATTERY DATA SHEET
Sunsynk 230v Hybrid Inverter Details
3.6kw SUNSYNK HYBRID INVERTER DATA SHEET
8kw SUNSYNK HYBRID INVERTER DATA SHEET
16kw SUNSYNK HYBRID INVERTER DATA SHEET
This system can be used as an AC charger
This system can be used as UPS
NOTE! Ac 230v and 3 phase mains powered equipment must be connected by suitably qualified electrical engineers
Dragons Breath Deep Cycle Solar Panel Batteries & Spare Parts
Description
In this link we offer the Sunsynk AC battery charger unit c/w an optional range of lithium battery packs, designed to provide various amounts of battery storage using low cost energy.
The system has several options that can be set in such a way that the energy captured will only go to household services and not back to the national grid.

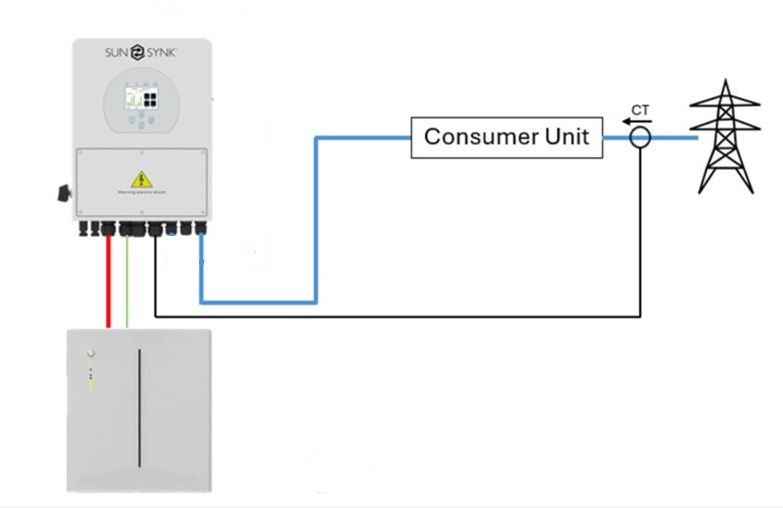

CLICK HERE TO UNDERSTAND HOW AC CHARGER STORES ENERGY
This system can charge up to 20kwh storage using 4 number 5kwh wall mounted or rack batteries using low tariff overnight electricity to charge facility.Each one of our battery storage systems are produced to match the needs of our customers.
Designed to provide 230v solar storage power when needed across the UK.
Matched to meet with homeowners’ requirements.
This system can be used with:
It is possible to connect one battery or several batteries to enable up to 20kwh of storage for the home needs.
Solar will charge batteries during sunlight times. Overnight charging at reduced prices. This will provide Power storage throughout the year.
Mechanically designed for an easy installation process.
Adding batteries to a existing PV solar system #sunsynk (youtube.com
AC charger Installation VIDEO

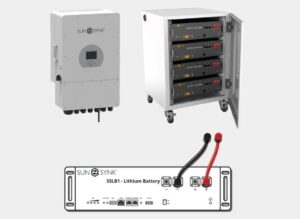

We offer kits with high capacity as needed, which can provide from 5kwh – 20kwh of storage in purpose built storage.
Ideal for EV charging stations, as it can be stored in a garage.
Additional items each of our Sunsynk battery installation kit includes:
Inter connection battery cables
Battery to inverter connection cables
Battery isolation switch disconnector and fuses
CT coil extension kit
If you want to view our complete list of Solar Panel home grid systems and kits. Click on picture below
Data sheet
