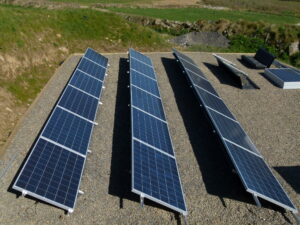

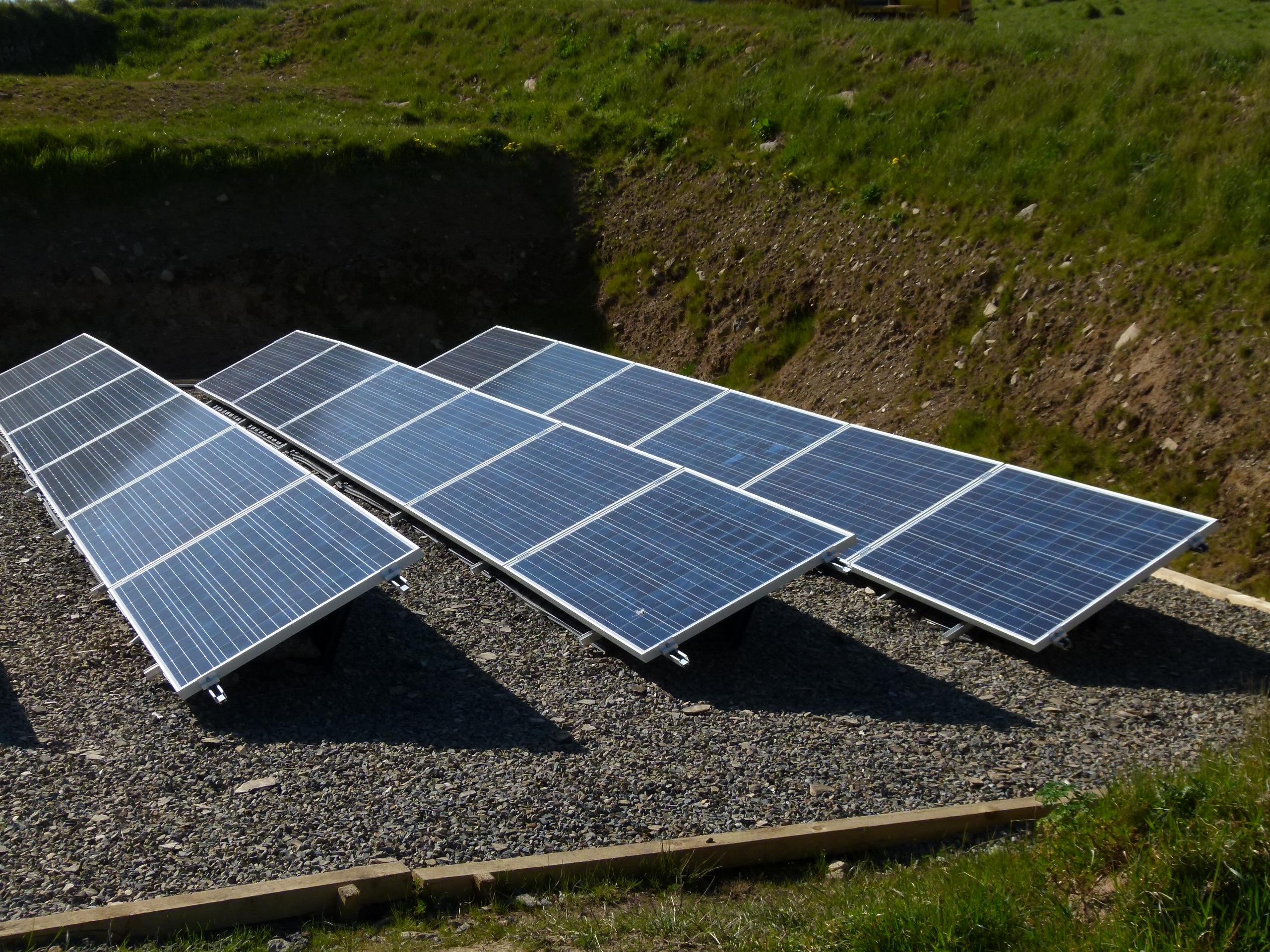

This is the DBS flexible ground mounting system. It provides the user with a simple bolt together option to place buckets in position without the need to bolt down or sink into the ground.
These kits just bolt together, with the pre assembly being able to be done relatively quickly on site.
Once assembled and placed where needed, the buckets are then back filled with appropriate pea shingle or sand as ballast.
Designed for rows of 2, 4, 0r 6 panels in horizontal positioning. The angle is pre set to provide 15° orientation pointing towards the Suns horizon.
Flexible solar fixing layout data sheet
Flexible ground mounting system, calculation for ballast
Flexible ground mounting system
£638.00 – £2,175.00Price range: £638.00 through £2,175.00
Select from drop down menu the solar panel array fixing required.
Description
This is the DBS flexible ground mounting system. It provides the user with a simple bolt together option to place buckets in position without the need to bolt down or sink into the ground.
These kits just bolt together, with the pre assembly being able to be done relatively quickly on site.
Once assembled and placed where needed, the buckets are then back filled with appropriate pea shingle or sand as ballast.
Designed for rows of 2, 4, 0r 6 panels in horizontal positioning. The angle is pre set to provide 15° orientation pointing towards the Suns horizon.
Flexible solar fixing layout data sheet
Flexible ground mounting system, calculation for ballast
Setting of angles to match location
