Ideal foundation would be a solid concrete base. This can be in strips to match the legs of N-Rack or a complete slab.
Suitable for PV most panels sizes up to 450w. These can be affixed in place two modules high, one above each other.
The kit is complete with all materials needed except foundation media. Panel clamps are out universal type to match 32-43mm PV panel sizes.
The angle of the P-rack kit can be set to match 15°, 20° or 25° dependent on locational needs.
The foundation media needs to be set out by ground workers, the sub soil needs to support weight of total kit. This could be in excess of 400kg. Therefore it is the responsibility of the contractor to make sure this matches ground conditions. Please note: concrete foundations must be sourced by the customer, these will not be included in the delivery.
Should you require a smaller ground mounted facility, then go to this page.
12 panel ground mounted solar panel fixing kit
The assembly of PV modules are designed for small ground mounted projects.
£638.00–£2,175.00Price range: £638.00 through £2,175.00Select options
This product has multiple variants. The options may be chosen on the product page
K2 P-Rack System
£2,350.00 – £2,400.00Price range: £2,350.00 through £2,400.00
The K2 P rack system, has now been superseded by “N” rack.
This kit can support panels in portrait, in rows of 6 above 6 = 12 modules or 12 above 12 = 24 modules.
Can be easily mounted onto pre laid concrete foundation plinth.
Ground mounted solar panel fixing. Ideal for locations without height restrictions
Width of 12 module array = 7,050mm | Hight of 12 module array = 2,210mm
Width of 24 module array = 14,100mm | Hight of 24 module array = 2,210mm
N rack ground mounting PDF design details
Complete list of Dragons Breath Solar Fixings PV Panel Mounting Parts & Kits
Description
Solar ground mounted K2 P-Rack system is ideal for any PV panel project size.
HAS NOW BEEN SUPERCEEDED BY “N” rack

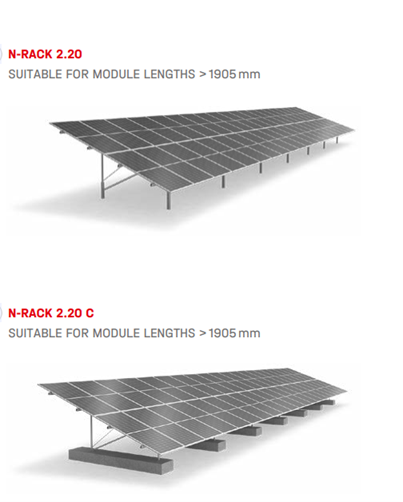

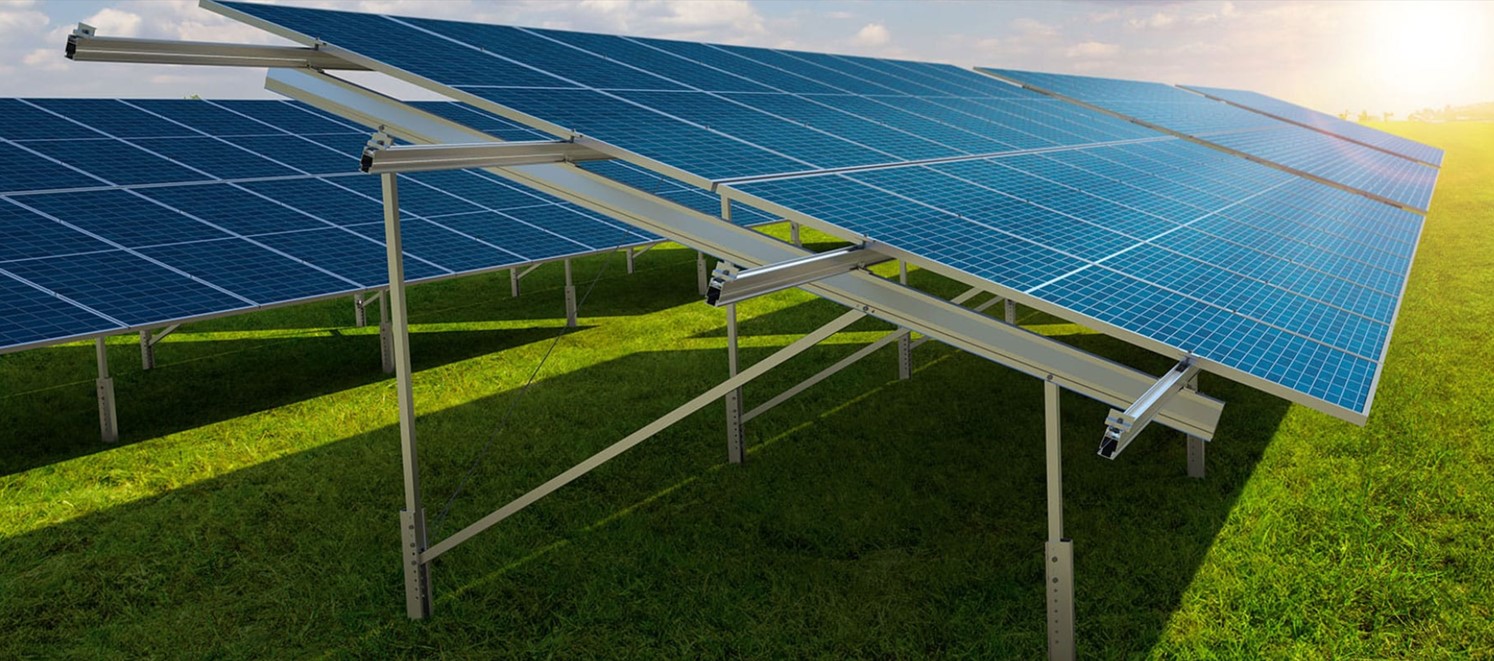

This NEW N Rack system is a multi functional ground mounting kit, for concrete foundation or pile driven ground.
Ideal for PV panels in Portrait @ 15° or 20°
We offer two unique N rack kits to match location wind speeds.
Ideal foundation would be a solid concrete base. This can be in strips to match the legs of N-Rack or a complete slab.
Suitable for PV most panels sizes up to 450w. These can be affixed in place two modules high, one above each other.
The kit is complete with all materials needed except foundation media. Panel clamps are out universal type to match 32-43mm PV panel sizes.
The angle of the P-rack kit can be set to match 15°, 20° or 25° dependent on locational needs.
The foundation media needs to be set out by ground workers, the sub soil needs to support weight of total kit. This could be in excess of 400kg. Therefore it is the responsibility of the contractor to make sure this matches ground conditions. Please note: concrete foundations must be sourced by the customer, these will not be included in the delivery.
Should you require a smaller ground mounted facility, then go to this page.
The assembly of PV modules are designed for small ground mounted projects.
For all other solar fixing parts or complete kits go to the link below.
DBS K2 solar fixing parts and kits prices 2024
P-Rack Information page
Click on this link for P-Rack assembly instructions
Kit 1: Standard P-Rack kits
Designed for wind and snow loads of 0.8kN/m²
(weight 94kg)
Kit 2: High Wind P-Rack kits
Designed for wind and snow loads of 1.3 kN/m²
(weight 122kg)
