The Mini rail Speed Fixing system is a complete unit ready to attach to box-section roofs. It comprises of the mini rail with rubber buffer strip on back of mini rails.
This is to allow safe penetration without water leaks when using the kits self drilling neoprene headed screws. It also has a fully adjustable option of mid or end clamps to match any requirements.

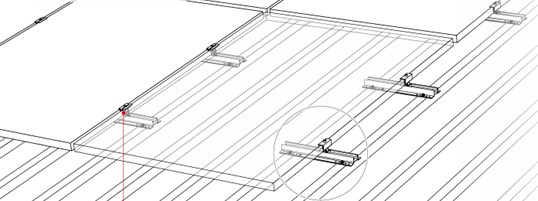

We offer the mini rail solar panel fixing system for box section metal roofs. These are positioned in place using 4 x stainless steel self tapping screws. The method is to place one of the mini rails on each corner for single solar panel installations. Where the fixture is for multiple solar panels, then the mid fixing is required between the two panels.
Parts included on this page are as follows:
Mini rails to match the application (mid or end clamps) Black or silver finish
Fixing screws to attach securely in place.
Mini rail speed fixing
£6.95 – £375.28Price range: £6.95 through £375.28
Mini rail solar panel fixing system for box section metal roofs.
Dragons Breath Solar Fixings PV Panel Mounting Parts & Kits
Description
The Mini rail Speed Fixing system is a complete unit ready to attach to box-section roofs. It comprises of the mini rail with rubber buffer strip on back of mini rails.
This is to allow safe penetration without water leaks when using the kits self drilling neoprene headed screws. It also has a fully adjustable option of mid or end clamps to match any requirements.
We offer the mini rail solar panel fixing system for box section metal roofs. These are positioned in place using 4 x stainless steel self tapping screws. The method is to place one of the mini rails on each corner for single solar panel installations. Where the fixture is for multiple solar panels, then the mid fixing is required between the two panels.
Parts included on this page are as follows:
Mini rails to match the application (mid or end clamps) Black or silver finish
Fixing screws to attach securely in place.
See mini rail fixing video instructions for installation.
See drop down menu below to select parts required.
Please advise how many mid sections and how many end mini rail sections you require when placing any orders.
To increase the angle please make a purchase using these parts: Mini rail single side front and rear panel angle set c/w end clamp fixings + screws.
Pages below are linked to mini rails and components.
Note: Mini rail speed fixings can be angled. This set will do one side of a solar panel, so two are required per panel.
If you want to angle panels using these fixings, you can use the K2 official assembly video as a reference point.
Mini Rail
Part number:2004211
Weight: 0.32kg
Dimensions:
Parts in kit:
Click onto picture below to access K2 fixings page
Link to Mini Rail Angle Fixings by K2 Systems
Data
1 panel x 1 row roof fixing kit: = 4 mini rails + 16 screws + 4 mini rail end clamps + 4 cable tidy clips + 4 cable ties.
2 panel x 1 row roof fixing kit: = 6 mini rails + 24 screws + 2 mini rail mid clamps + 4 mini rail end clamps + 8 cable tidy clips + 8 cable ties.
3 panel x 1 row roof fixing kit: = 8 mini rails + 32 screws + 4 mini rail mid clamps + 4 mini rail end clamps + 12 cable tidy clips + 12 cable ties.
4 panel x 1 row roof fixing kit: = 10 mini rails + 40 screws + 6 mini rail mid clamps + 4 mini rail end clamps + 16 cable tidy clips + 16 cable ties.
5 panel x 1 row roof fixing kit: = 12 mini rails + 48 screws + 8 mini rail mid clamps + 4 mini rail end clamps + 20 cable tidy clips + 20 cable ties.
6 panel x 1 row roof fixing kit: = 14 mini rails + 56 screws + 10 mini rail mid clamps + 4 mini rail end clamps + 24 cable tidy clips + 24 cable ties.
7 panel x 1 row roof fixing kit: = 16 mini rails + 64 screws + 12 mini rail mid clamps + 4 mini rail end clamps + 28 cable tidy clips + 28 cable ties.
8 panel x 1 row roof fixing kit: = 18 mini rails + 72 screws + 14 mini rail mid clamps + 4 mini rail end clamps + 32 cable tidy clips + 32 cable ties.
9 panel x 1 row roof fixing kit: = 20 mini rails + 80 screws + 16 mini rail mid clamps + 4 mini rail end clamps + 36 cable tidy clips + 36 cable ties.
10 panel x 1 row roof fixing kit: = 22 mini rails + 88 screws + 18 mini rail mid clamps + 4 mini rail end clamps + 40 cable tidy clips + 40 cable ties.
11 panel x 1 row roof fixing kit: = 24 mini rails + 96 screws + 20 mini rail mid clamps + 4 mini rail end clamps + 44 cable tidy clips + 44 cable ties.
12 panel x 1 row roof fixing kit: = 26 mini rails + 104 screws + 22 mini rail mid clamps + 4 mini rail end clamps + 48 cable tidy clips + 48 cable ties.
14 panel x 1 row roof fixing kit: = 30 mini rails + 120 screws + 26 mini rail mid clamps + 4 mini rail end clamps + 56 cable tidy clips + 56 cable ties.
15 panel x 1 row roof fixing kit: = 32 mini rails + 128 screws + 28 mini rail mid clamps + 4 mini rail end clamps + 60 cable tidy clips + 60 cable ties.
16 panel x 1 row roof fixing kit: = 34 mini rails + 136 screws + 30 mini rail mid clamps + 4 mini rail end clamps + 64 cable tidy clips + 64 cable ties.
