We offer the new S dome panel kits for flat surface solar panel mounting using 1, 2, or 3 panels.
S dome panel kits
To select the kit to suit your preference, go to the drop down menu.
The S dome 6.10 system can accept multiple rows of solar PV panels in landscape orientation.

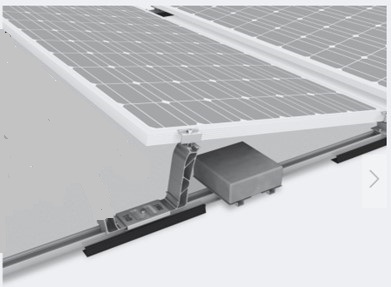

This item is the S dome, flat roof fixing kit, which can be used with the speed porter of the long porter to weigh down using concrete blocks or equivalent. All kits exclude solar panels and windbreaker.
1 panel landscape x 1 row c/w 8 speed porter flat roof fixing kit: = 2 x 2.25m base rails c/w 4 x rubber feet + 2 x S dome peak set + 6 x S dome self taping screws + 8 x slot nuts + 8 x 20mm Allen screws + 4 mini end clamps 30-43mm + 2 x cable manager + 1 x lightning protection clamp + (excluding wind breaker).
1 panel landscape x 1 row c/w 2 LONG PORTER flat roof fixing kit: = 2 x 2.25m base rails c/w 4 x rubber feet + 4 speed porter + 2 x S dome peak set + 6 x S dome self taping screws + 18 x slot nuts + 18 x 20mm Allen screws + 4 mini end clamps 30-43mm + 2 x cable manager + 1 x lightning protection clamp + (excluding wind breaker).
2 panel landscape x 1 row c/w 12 speed porter flat roof fixing kit: = 3 x 2.25m base rails c/w 6 x rubber feet + 3 x S dome peak set+ 12 x S dome self taping screws + 12 x slot nuts + 12 x 20mm Allen screws + 4 end clamps 30-43mm + 2 mid clamps 30-43mm + 4 x cable manager + 1 x lightning protection clamp + (excluding wind breaker).
2 panel landscape x 1 row c/w 4 LONG PORTER fixing kit: = 3 x 2.25m base rails c/w 6 x rubber feet + 6 speed porter + 3 x S dome peak set + 12 x S dome self taping screws + 24 x slot nuts + 24 x 20mm Allen screws + 4 end clamps 30-43mm + 2 mid clamps 30-43mm + 4 x cable manager + 1 x lightning protection clamp + (excluding wind breaker).
3 panels landscape x 1 row c/w 16 speed porter flat roof fixing kit: + 4 x 2.25m base rails c/w 8 x rubber feet + 4 x S dome peak set + 18 x S dome self taping screws + 24 x slot nuts + 24 x 20mm Allen screws + 4 x end clamps 30-43mm + 4 x mid clamps 30-43mm + 6 x cable manager + 1 x lightning protection clamp + (excluding wind breaker).
3 panels landscape x 1 row c/w 6 LONG PORTER flat roof fixing kit: + 4 x 2.25m base rails c/w 8 x rubber feet + 8 speed porter + 4 x S dome peak set + 18 x S dome self taping screws + 36 x slot nuts + 36 x 20mm Allen screws + 4 x end clamps 30-43mm + 4 x mid clamps 30-43mm + 6 x cable manager + 1 x lightning protection clamp + (excluding wind breaker).
4 panels landscape x 1 row c/w 8 LONG PORTER flat roof fixing kit: + 5 x 2.25m base rails c/w 10 x rubber feet + 10 speed porter + 5 x S dome peak set + 24 x S dome self taping screws + 48 x slot nuts + 48 x 20mm Allen screws + 4 x end clamps 30-43mm + 6 x mid clamps 30-43mm + 8 x cable manager + 1 x lightning protection clamp + (excluding wind breaker).
4 panels x 2 rows of 2 landscape c/w 8 LONG PORTER flat roof fixing kit: = 6 x 2.25m base rails c/w 12 x rubber feet + 6 x S dome peak set + 12 x S dome self taping screws + 24 x slot nuts + 24 x 20mm Allen screws + 6 x end clamps 30-43mm + 4 x mid clamps 30-43mm + 8 x cable manager + 2 x lightning protection clamp + 3 x rail joiners (excluding wind breaker).
5 panels landscape x 1 row c/w 10 LONG PORTER flat roof fixing kit: + 6 x 2.25m base rails c/w 12 x rubber feet + 12 speed porter + 6 x S dome peak set + 30 x S dome self taping screws + 60 x slot nuts + 60 x 20mm Allen screws + 4 x end clamps 30-43mm + 8 x mid clamps 30-43mm + 10 x cable manager + 1 x lightning protection clamp + (excluding wind breaker).
4 panels x 2 rows of 2 landscape c/w 24 speed porter flat roof fixing kit: = 6 x 2.25m base rails c/w 12 x rubber feet + 6 x back & front S dome peak + 12 x S dome self taping screws + 24 x slot nuts + 24 x 20mm Allen screws + 6 x end clamps 30-43mm + 4 x mid clamps 30-43mm + 8 x cable manager + 2 x lightning protection clamp + 3 x rail joiners (excluding wind breaker).
6 panels x 2 rows of 3 landscape c/w 32 speed porter flat roof fixing kit: = 8 x 2.25m base rails +16 x rubber feet + 8 x back & front S dome peak + 24 x S dome self taping screws + 24 x slot nuts + 24 x 20mm Allen screws + 8 x end clamps 30-43mm + 8 x mid clamps 30-43mm + 12 x cable manager + 2 x lightning protection clamp + 4 x rail joiners (excluding wind breaker).
6 panels x 2 rows of 3 landscape c/w 12 LONG PORTER flat roof fixing kit: = 8 x 2.25m base rails +16 x rubber feet + 16 speed porter + 8 x S dome peak sets + 36 x S dome self taping screws + 72 x slot nuts + 72 x 20mm Allen screws + 8 x end clamps 30-43mm + 8 x mid clamps 30-43mm + 12 x cable manager + 2 x lightning protection clamp + 4 x rail joiners (excluding wind breaker).
8 panels x 2 rows of 4 landscape c/w 16 LONG PORTER flat roof fixing kit: = 10 x 2.25m base rails + 32 x rubber feet + 20 speed porter + 16 x S dome peak sets + 48 x S dome self taping screws + 48 x slot nuts + 48 x 20mm Allen screws + 8 x end clamps 30-43mm + 16 x mid clamps 30-43mm + 12 x cable manager + 2 x lightning protection clamp + 8 x rail joiners (excluding wind breaker).
9 panels x 3 rows of 3 landscape c/w 48 speed porter flat roof fixing kit: = 12 x 2.25m base rails + 24 rubber feet +12 x S dome peak + 36 x S dome self taping screws + 36 x slot nuts + 36 x 20mm Allen screws + 12 x end clamps 30-43mm + 12 x mid clamps 30-43mm + 18 x cable manager + 3 x lightning protection clamp + 8 x rail joiners (excluding wind breaker).
9 panels x 3 rows of 3 landscape c/w 18 LONG PORTER flat roof fixing kit: = 12 x 2.25m base rails + 24 rubber feet + 24 speed porter + 12 x S dome peak + 54 x S dome self taping screws + 108 x slot nuts + 108 x 20mm Allen screws + 12 x end clamps 30-43mm + 12 x mid clamps 30-43mm + 18 x cable manager + 3 x lightning protection clamp + 12 x rail joiners (excluding wind breaker).
10 panels x 2 rows of 5 landscape c/w 20 LONG PORTER flat roof fixing kit: = 12 x 2.25m base rails + 24 rubber feet + 24 speed porter + 12 x S dome peak + 60 x S dome self taping screws + 120 x slot nuts + 120 x 20mm Allen screws + 12 x end clamps 30-43mm + 12 x mid clamps 30-43mm + 18 x cable manager + 3 x lightning protection clamp + 6 x rail joiners (excluding wind breaker).
S dome panel kits
£201.55 – £1,925.00Price range: £201.55 through £1,925.00
K2 S dome video
Dragons Breath Solar Fixings PV Panel Mounting Parts & Kits
Description
We offer the new S dome panel kits for flat surface solar panel mounting using 1, 2, or 3 panels.
S dome panel kits
To select the kit to suit your preference, go to the drop down menu.
The S dome 6.10 system can accept multiple rows of solar PV panels in landscape orientation.

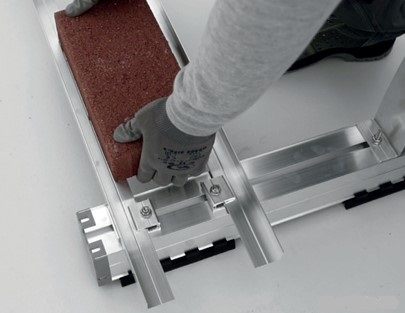

This item is the S dome, flat roof fixing kit, which can be used with the speed porter of the long porter to weigh down using concrete blocks or equivalent. All kits exclude solar panels and windbreaker.

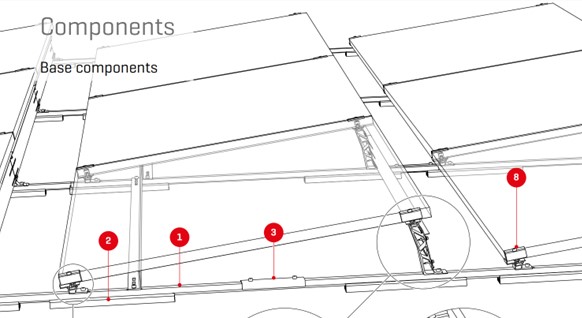

S dome express 6.10 system

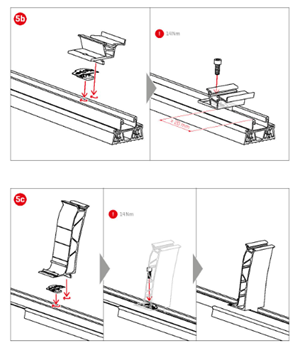

S dome express 6.10 assembly instructions
Panel layout
S dome system | 3 panels in one row
S dome system | 3 panels in single rows
1 panel landscape x 1 row c/w 8 speed porter flat roof fixing kit: = 2 x 2.25m base rails c/w 4 x rubber feet + 2 x S dome peak set + 6 x S dome self taping screws + 8 x slot nuts + 8 x 20mm Allen screws + 4 mini end clamps 30-43mm + 2 x cable manager + 1 x lightning protection clamp + (excluding wind breaker).
1 panel landscape x 1 row c/w 2 LONG PORTER flat roof fixing kit: = 2 x 2.25m base rails c/w 4 x rubber feet + 4 speed porter + 2 x S dome peak set + 6 x S dome self taping screws + 18 x slot nuts + 18 x 20mm Allen screws + 4 mini end clamps 30-43mm + 2 x cable manager + 1 x lightning protection clamp + (excluding wind breaker).
2 panel landscape x 1 row c/w 12 speed porter flat roof fixing kit: = 3 x 2.25m base rails c/w 6 x rubber feet + 3 x S dome peak set+ 12 x S dome self taping screws + 12 x slot nuts + 12 x 20mm Allen screws + 4 end clamps 30-43mm + 2 mid clamps 30-43mm + 4 x cable manager + 1 x lightning protection clamp + (excluding wind breaker).
2 panel landscape x 1 row c/w 4 LONG PORTER fixing kit: = 3 x 2.25m base rails c/w 6 x rubber feet + 6 speed porter + 3 x S dome peak set + 12 x S dome self taping screws + 24 x slot nuts + 24 x 20mm Allen screws + 4 end clamps 30-43mm + 2 mid clamps 30-43mm + 4 x cable manager + 1 x lightning protection clamp + (excluding wind breaker).
3 panels landscape x 1 row c/w 16 speed porter flat roof fixing kit: + 4 x 2.25m base rails c/w 8 x rubber feet + 4 x S dome peak set + 18 x S dome self taping screws + 24 x slot nuts + 24 x 20mm Allen screws + 4 x end clamps 30-43mm + 4 x mid clamps 30-43mm + 6 x cable manager + 1 x lightning protection clamp + (excluding wind breaker).
3 panels landscape x 1 row c/w 6 LONG PORTER flat roof fixing kit: + 4 x 2.25m base rails c/w 8 x rubber feet + 8 speed porter + 4 x S dome peak set + 18 x S dome self taping screws + 36 x slot nuts + 36 x 20mm Allen screws + 4 x end clamps 30-43mm + 4 x mid clamps 30-43mm + 6 x cable manager + 1 x lightning protection clamp + (excluding wind breaker).
4 panels landscape x 1 row c/w 8 LONG PORTER flat roof fixing kit: + 5 x 2.25m base rails c/w 10 x rubber feet + 10 speed porter + 5 x S dome peak set + 24 x S dome self taping screws + 48 x slot nuts + 48 x 20mm Allen screws + 4 x end clamps 30-43mm + 6 x mid clamps 30-43mm + 8 x cable manager + 1 x lightning protection clamp + (excluding wind breaker).
4 panels x 2 rows of 2 landscape c/w 8 LONG PORTER flat roof fixing kit: = 6 x 2.25m base rails c/w 12 x rubber feet + 6 x S dome peak set + 12 x S dome self taping screws + 24 x slot nuts + 24 x 20mm Allen screws + 6 x end clamps 30-43mm + 4 x mid clamps 30-43mm + 8 x cable manager + 2 x lightning protection clamp + 3 x rail joiners (excluding wind breaker).
5 panels landscape x 1 row c/w 10 LONG PORTER flat roof fixing kit: + 6 x 2.25m base rails c/w 12 x rubber feet + 12 speed porter + 6 x S dome peak set + 30 x S dome self taping screws + 60 x slot nuts + 60 x 20mm Allen screws + 4 x end clamps 30-43mm + 8 x mid clamps 30-43mm + 10 x cable manager + 1 x lightning protection clamp + (excluding wind breaker).
4 panels x 2 rows of 2 landscape c/w 24 speed porter flat roof fixing kit: = 6 x 2.25m base rails c/w 12 x rubber feet + 6 x back & front S dome peak + 12 x S dome self taping screws + 24 x slot nuts + 24 x 20mm Allen screws + 6 x end clamps 30-43mm + 4 x mid clamps 30-43mm + 8 x cable manager + 2 x lightning protection clamp + 3 x rail joiners (excluding wind breaker).
6 panels x 2 rows of 3 landscape c/w 32 speed porter flat roof fixing kit: = 8 x 2.25m base rails +16 x rubber feet + 8 x back & front S dome peak + 24 x S dome self taping screws + 24 x slot nuts + 24 x 20mm Allen screws + 8 x end clamps 30-43mm + 8 x mid clamps 30-43mm + 12 x cable manager + 2 x lightning protection clamp + 4 x rail joiners (excluding wind breaker).
6 panels x 2 rows of 3 landscape c/w 12 LONG PORTER flat roof fixing kit: = 8 x 2.25m base rails +16 x rubber feet + 16 speed porter + 8 x S dome peak sets + 36 x S dome self taping screws + 72 x slot nuts + 72 x 20mm Allen screws + 8 x end clamps 30-43mm + 8 x mid clamps 30-43mm + 12 x cable manager + 2 x lightning protection clamp + 4 x rail joiners (excluding wind breaker).
8 panels x 2 rows of 4 landscape c/w 16 LONG PORTER flat roof fixing kit: = 10 x 2.25m base rails + 32 x rubber feet + 20 speed porter + 16 x S dome peak sets + 48 x S dome self taping screws + 48 x slot nuts + 48 x 20mm Allen screws + 8 x end clamps 30-43mm + 16 x mid clamps 30-43mm + 12 x cable manager + 2 x lightning protection clamp + 8 x rail joiners (excluding wind breaker).
9 panels x 3 rows of 3 landscape c/w 48 speed porter flat roof fixing kit: = 12 x 2.25m base rails + 24 rubber feet +12 x S dome peak + 36 x S dome self taping screws + 36 x slot nuts + 36 x 20mm Allen screws + 12 x end clamps 30-43mm + 12 x mid clamps 30-43mm + 18 x cable manager + 3 x lightning protection clamp + 8 x rail joiners (excluding wind breaker).
9 panels x 3 rows of 3 landscape c/w 18 LONG PORTER flat roof fixing kit: = 12 x 2.25m base rails + 24 rubber feet + 24 speed porter + 12 x S dome peak + 54 x S dome self taping screws + 108 x slot nuts + 108 x 20mm Allen screws + 12 x end clamps 30-43mm + 12 x mid clamps 30-43mm + 18 x cable manager + 3 x lightning protection clamp + 12 x rail joiners (excluding wind breaker).
10 panels x 2 rows of 5 landscape c/w 20 LONG PORTER flat roof fixing kit: = 12 x 2.25m base rails + 24 rubber feet + 24 speed porter + 12 x S dome peak + 60 x S dome self taping screws + 120 x slot nuts + 120 x 20mm Allen screws + 12 x end clamps 30-43mm + 12 x mid clamps 30-43mm + 18 x cable manager + 3 x lightning protection clamp + 6 x rail joiners (excluding wind breaker).
S dome data sheet
Click on this link to see the assembly instructions for K2 S dome PV fixing system
