K2 mini rail

Description

K2 MiniRail MK2 Set – Solar Panel Mounting Rail

The K2 MiniRail MK2 Set is a compact short-rail mounting system for fixing solar panels to suitable trapezoidal sheet-metal roofs.

Manufactured by K2 Systems, the MiniRail MK2 provides a practical alternative to using conventional full-length solar mounting rails. Its compact 385 mm length makes it particularly useful where short rail sections are preferred for direct fixing to suitable sheet-metal roofing.

The MiniRail MK2 can be used for vertical or horizontal solar panel installation when combined with the appropriate K2 module clamps and components. K2 specifies the system for suitable trapezoidal sheet-metal and sandwich-panel roofing applications.

What is included

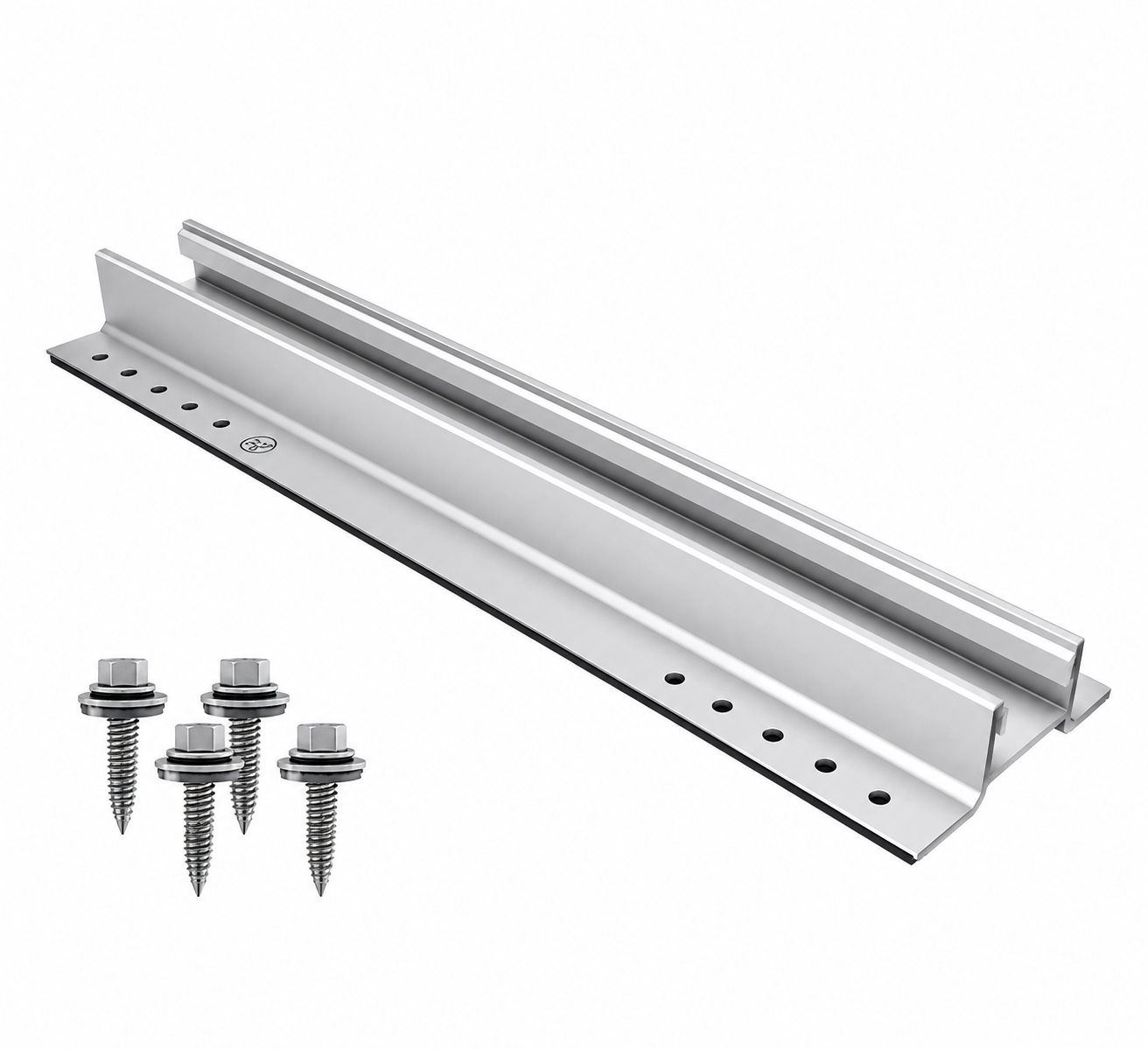

Each K2 MiniRail MK2 Set, part number 2004211, includes:

• 1 × K2 MiniRail MK2 mounting rail
• 4 × thread-forming fixing screws
• Sealing washers

The fixing screws are 6 mm diameter, with the sealing washer forming part of the roof fixing system.

K2 MiniRail MK2 features

• Genuine K2 Systems mounting component
• K2 product number 2004211
• Designed for trapezoidal sheet-metal roofs
• Short rail design – 385 mm long
• Suitable for vertical or horizontal module orientation
• Aluminium EN AW-6063 T66
• EPDM sealing component
• Stainless steel A2 components
• Supplied with 4 × 6 mm thread-forming screws and sealing washers
• MCS Certified
• Designed to work with compatible K2 MiniRail MK2 components and module clamps

Technical specification

These dimensions and materials are from K2 Systems’ current product information.

Roof compatibility

The K2 MiniRail MK2 system is intended for suitable trapezoidal sheet-metal roofing and can also be used with suitable sandwich-panel applications subject to the relevant requirements.

K2 specifies requirements including a minimum sheet thickness of 0.5 mm for steel or aluminium, a minimum crest width of 22 mm, and crest spacing of 101–350 mm depending on crest width. The system specification also gives a module frame-height range of 30–50 mm.

Please check the roof construction and K2 technical requirements before ordering to ensure the MiniRail system is suitable for your particular roof.

K2 MiniRail MK2 system

The MiniRail MK2 is part of the wider K2 MiniRail MK2 mounting system, which includes compatible module clamps and other components for different mounting configurations. K2 specifies the MiniRail system for both vertical and horizontal module orientation.
