Plain tile solar fixing kits, with all parts needed to complete installation. Used on man made or natural slate roofs. Dog leg brackets held in place using 2 x stainless steel screws. FIXING CLAMPS ARE AVAILABLE IN BLACK OR SILVER ANODISED FINISH (PLEASE ADVISE)
We offer our standard nominal on-roof standard connection plain tile fixing kits in portrait orientation. This is used on plain or slate tiled roofs as required. Includes standard equipment parts required, you may require further fixings depending on specific location requirements. Some installations may require further products, if in doubt please ask.
Note! Our kits are set out in portrait orientation in one or two rows to match your own panels.
Plain Tile Roof Solar Panel Parts
Each standard fixing kit includes: rails, plain tile fixing brackets, stainless steel fixing screws, T bolts and T nuts, Rails joiners if required, rail end caps and solar panel mid and end universal fixing clamps to match solar panel size 32-42mm. If you require larger clamp sizes please advise. Optional extra, watertight flashing kit.
YOU MAY REQUIRE A SOLAR PLAIN TILE FLASHING KIT. If so these fixing kits are available with or without. Check the drop down menu for details above.
Note! We will need to know the module size prior to dispatching equipment kit, due to the many different sized solar panels that are now on the market.
PLEASE ADVICE CLAMP SIZE TO MATCH YOUR SOLAR MODULES:
Check your solar panel size before placing a kit order
Setting out measurements are usually dependent on the roof timbers. You should take a measurement of your roof, as our kits are matched to 450mm spacing. As all UK roofs are different, this is only a guide. Therefore the installer is responsible for all measurements.
If you do not tell us the SOLAR PANEL SIZE you are using: We will send out universal mid and end clamps.
Universal clamps will suit solar panels sizes = 30-43mm
We offer plain tile solar panel fixing kits based upon 450mm rafter spacing and tile sizes. If your roof is different, then please advise. As the amount of brackets could alter depending on the spacing.
All solar panel fixing kit range, click on photo below.
Data
Fixing arrangement example plain-tile layout, for Standard and Extra Large size solar PV panels.
All of our plain-tile solar panel fixing kits contain these parts, to affix extra larger solar panels.
£295.00–£1,695.00Price range: £295.00 through £1,695.00Select options
This product has multiple variants. The options may be chosen on the product page
Plain Fixing Kits
£175.35 – £1,086.60Price range: £175.35 through £1,086.60
Plain tile solar fixing kits, with all parts needed to complete installation. Used on man made or natural slate roofs. Dog leg brackets held in place using 2 x stainless steel screws. FIXING CLAMPS ARE AVAILABLE IN BLACK OR SILVER ANODISED FINISH (PLEASE ADVISE)
Dragons Breath Solar Fixings PV Panel Mounting Parts & Kits
Description
PLAIN TILE FIXING KITS
We offer our standard nominal on-roof standard connection plain tile fixing kits in portrait orientation. This is used on plain or slate tiled roofs as required. Includes standard equipment parts required, you may require further fixings depending on specific location requirements. Some installations may require further products, if in doubt please ask.
Note! Our kits are set out in portrait orientation in one or two rows to match your own panels.
Plain Tile Roof Solar Panel Parts
Each standard fixing kit includes: rails, plain tile fixing brackets, stainless steel fixing screws, T bolts and T nuts, Rails joiners if required, rail end caps and solar panel mid and end universal fixing clamps to match solar panel size 32-42mm. If you require larger clamp sizes please advise. Optional extra, watertight flashing kit.
All parts included in this kit are as follows:
Optional extras
Solar roof multi panel covering kits
Click on this link to see what is in the kit: Plain tile roof fixing kits in portrait orientation
YOU MAY REQUIRE A SOLAR PLAIN TILE FLASHING KIT. If so these fixing kits are available with or without. Check the drop down menu for details above.
Note! We will need to know the module size prior to dispatching equipment kit, due to the many different sized solar panels that are now on the market.
PLEASE ADVICE CLAMP SIZE TO MATCH YOUR SOLAR MODULES:
Check your solar panel size before placing a kit order
Setting out measurements are usually dependent on the roof timbers. You should take a measurement of your roof, as our kits are matched to 450mm spacing. As all UK roofs are different, this is only a guide. Therefore the installer is responsible for all measurements.
Clamp sizes available: 30mm, 34-36mm, 37-38mm, 39-41mm, 42-43mm, (44-50mm limited stock)
If you do not tell us the SOLAR PANEL SIZE you are using: We will send out universal mid and end clamps.
Universal clamps will suit solar panels sizes = 30-43mm
We offer plain tile solar panel fixing kits based upon 450mm rafter spacing and tile sizes. If your roof is different, then please advise. As the amount of brackets could alter depending on the spacing.
All solar panel fixing kit range, click on photo below.
Data
Fixing arrangement example plain-tile layout, for Standard and Extra Large size solar PV panels.
All of our plain-tile solar panel fixing kits contain these parts, to affix extra larger solar panels.
Plain-tile bracket numbers as just a guide with rafter spacing @ 450mm between timbers.
1 panel kit x 1 row PLAIN-TILE PORTRAIT roof fixing kit: = 4 brackets + 8 wood screws + 4 flashing kits + 4 T bolts + 4 nuts + 1 rail @ 2.5m + 4 rail end caps + 4 universal end clamps + 4 cable tidy clips + 4 cable ties.
1 panel kit x 1 row PLAIN-TILE LANDSCAPE roof fixing kit: = 5 brackets + 10 wood screws + 5 flashing kits + 5 T bolts + 5 nuts + 2 rails @ 2.5m + 4 rail end caps + 4 universal end clamps + 4 cable tidy clips + 4 cable ties.
2 panel kit x 1 row PLAIN-TILE PORTRAIT roof fixing kit: = 7 brackets + 14 wood screws +7 flashing kits + 7 T bolts + 7 nuts + 2 rails @ 2.5m + 4 rail end caps + 4 universal end clamps + 2 universal mid clamps + 8 cable tidy clips + 8 cable ties.
2 panel kit x 1 row PLAIN-TILE LANDSCAPE roof fixing kit: = 8 brackets + 16 wood screws + 8 flashing kits + 8 T bolts + 8 nuts + 2 rails @ 2.5m + 2 rails @ 3.65m + 2 rail connectors + 4 rail end caps + 4 universal end clamps + 2 universal mid clamps + 8 cable tidy clips + 8 cable ties.
3 panel x 1 row PLAIN-TILE PORTRAIT roof fixing kit: = 11 brackets + 22 wood screws + 11 flashing kits + 11 T bolts + 11 nuts + 2 rails @ 3.65m + 4 rail end caps + 4 universal end clamps + 4 universal mid clamps + 12 cable tidy clips + 12 cable ties.
3 panel x 1 row PLAIN-TILE LANDSCAPE roof fixing kit: = 12 brackets + 24 wood screws + 12 flashing kits + 12 T bolts + 12 nuts + 4 rails @ 3.65m + 2 rail connectors + 4 rail end caps + 4 universal end clamps + 4 universal mid clamps + 12 cable tidy clips + 12 cable ties.
4 panel x 1 row PLAIN-TILE PORTRAIT roof fixing kit: = 14 brackets + 28 wood screws + 14 flashing kits + 14 T bolts + 14 nuts + 4 rails @ 2.5m + 2 rail connectors + 4 rail end caps + 4 universal end clamps + 6 universal mid clamps + 16 cable tidy clips + 16 cable ties.
5 panel x 1 row PLAIN-TILE PORTRAIT roof fixing kit: = 15 brackets + 30 wood screws + 15 flashing kits + 15 T bolts + 15 nuts + 2 rails @ 3.65m + 2 rails @ 2.5m + 4 rail connectors + 4 rail end caps + 4 universal end clamps + 8 universal mid clamps + 20 cable tidy clips + 20 cable ties.
6 panel x 1 row PLAIN-TILE PORTRAIT roof fixing kit: = 18 brackets + 36 wood screws + 18 flashing kits + 18 T bolts + 18 nuts + 4 rails @ 3.65m + 4 rail connectors + 4 rail end caps + 4 universal end clamps + 10 universal mid clamps + 24 cable tidy clips + 24 cable ties.
6 panel x 2 rows PLAIN-TILE PORTRAIT roof fixing kit: = 22 brackets + 44 wood screws + 22 flashing kits + 22 T bolts + 22 nuts + 4 rails @ 3.65m + 4 rail connectors + 8 rail end caps + 8 universal end clamps + 8 universal mid clamps + 24 cable tidy clips + 24 cable ties .
7 panel x 1 row PLAIN-TILE PORTRAIT roof fixing kit: = 23 brackets + 46 wood screws + 23 flashing kits + 23 T bolts + 23 nuts + 4 rails @ 2.5m + 2 rails @ 3.65m + 4 rail connectors + 4 rail end caps + 4 universal end clamps + 12 universal mid clamps + 28 cable tidy clips + 28 cable ties.
8 panel x 1 row PLAIN-TILE PORTRAIT roof fixing kit: = 25 brackets + 50 wood screws + 25 flashing kits + 25 T bolts + 25 nuts + 8 rails @ 2.5m + 6 rail connectors + 4 rail end caps + 4 universal end clamps + 14 universal mid clamps + 32 cable tidy clips + 32 cable ties.
8 panel x 2 rows PLAIN-TILE PORTRAIT roof fixing kit: = 28 brackets + 56 wood screws + 28 flashing kits + 28 T bolts + 28 nuts + 8 rails @ 2.5m + 4 rail connectors + 8 rail end caps + 8 universal end clamps + 12 universal mid clamps + 32 cable tidy clips + 4 cable ties
9 panel x 1 row PLAIN-TILE PORTRAIT roof fixing kit: = 27 brackets + 54 wood screws + 27 flashing kits + 27 T bolts + 27 nuts + 6 rails @ 3.65m + 6 rail connectors + 4 rail end caps + 4 universal end clamps + 16 universal mid clamps + 36 cable tidy clips + 36 cable ties.
10 panel x 2 rows PLAIN-TILE PORTRAIT roof fixing kit: = 32 brackets + 64 wood screws + flashing kits + 32 T bolts + 32 nuts + 4 rails @ 3.65m + 2 rails @ 2.5m + 8 rail connectors + 8 rail end caps + 8 universal end clamps + 16 universal mid clamps + 40 cable tidy clips + 40 cable ties.
12 panel x 2 rows PLAIN-TILE PORTRAIT roof fixing kit: = 36 brackets + 72 wood screws + 36 flashing kits + 36 T bolts + 36 nuts + 8 rails @ 3.65m + 6 rail connectors + 8 rail end caps + 8 universal end clamps + 20 universal mid clamps + 48 cable tidy clips + 48 cable ties.
14 panel x 2 rows PLAIN-TILE PORTRAIT roof fixing kit: = 38 brackets + 76 wood screws + 38 flashing kits + 38 T bolts + 38 nuts + 8 rails @ 3.65m + 4 rails @ 2.5m + 8 rail connectors + 8 rail end caps + 8 universal end clamps + 24 universal mid clamps + 56 cable tidy clips + 56 cable ties.
16 panel x 2 rows PLAIN-TILE PORTRAIT roof fixing kit: = 46 brackets + 92 wood screws + 46 flashing kits + 46 T bolts + 46 nuts + 8 rails @ 3.65m + 4 rails @ 2.5m + 8 rail connectors + 8 rail end caps + 8 universal end clamps + 28 universal mid clamps + 64 cable tidy clips + 64 cable ties.
Specification

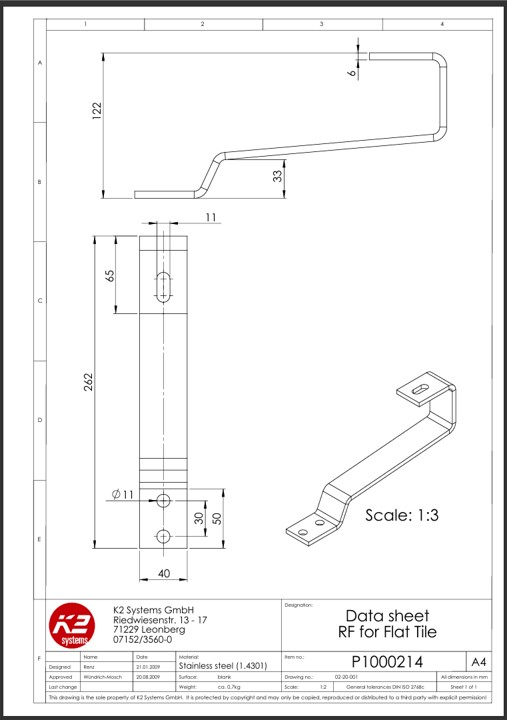

Flat hook details
