Solar PV fuse box with slow-burn DC fuses designed to provide circuit protection for solar panel cables and connected equipment. Supplied with 8A, 12A, 15A or 20A fuse options, with versions available with MC4 cables for connection between the PV panels and DC isolation switch.
Solar PV Fuse Box with DC Switch and Solar String Fuses

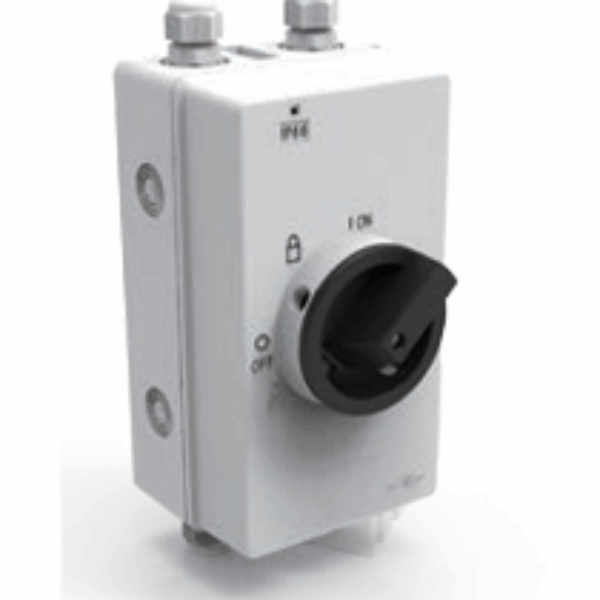

The Dragons Breath Solar PV Fuse Box combines a DC switch with two solar PV slow-blow fuses to provide switching and fuse protection for compatible solar panel circuits. It is designed for use in solar PV systems where suitable circuit protection is required between the solar panels and the DC isolation switch.
Available Fuse Ratings
The PV fuse box can be supplied with the following fuse ratings:
8A
12A
15A
20A
Other fuse ratings may be available on request, subject to compatibility with the system design.
Application in Solar PV Systems
The fuse box is intended for use in compatible solar PV circuits. Correct fuse selection depends on the solar panel specifications, string arrangement, cable ratings and the electrical requirements of the system.
Important: The fuse rating and switching equipment must be suitable for the system’s DC voltage and current. Do not select a fuse solely by matching it to the solar panel’s nominal power rating.
Please confirm the required fuse rating and system compatibility before ordering. Dragons Breath Solar supplies solar equipment and technical product information but does not provide installation services.
This fits in between solar panels and DC isolation switch.
The Switch can be sent out c/w 8 Amps, 12A, 15A or 20A fuses, depending on your request. Fuses in our range are from 1A through to 20 Amp depending on your design. We must therefore ask you to select your design using the catalogue below.
PV fuse box assembly is inserted prior to PV fuse box dc cable Isolation switch
We can offer these now with or without MC4 cables for easy connection from PV panel strings.
Designed to hold the PV fuses safely and securely in one place.
Alternative PV cable assembly parts listed in picture below.
£10.50–£16.95Price range: £10.50 through £16.95excl. VATSelect optionsThis product has multiple variants. The options may be chosen on the product page
PV fuse box
£104.00 excl. VAT
PV Fuse Box
Solar PV fuse box with slow-burn DC fuses designed to provide circuit protection for solar panel cables and connected equipment. Supplied with 8A, 12A, 15A or 20A fuse options, with versions available with MC4 cables for connection between the PV panels and DC isolation switch.
Description
Solar PV Fuse Box with DC Switch and Solar String Fuses
The Dragons Breath Solar PV Fuse Box combines a DC switch with two solar PV slow-blow fuses to provide switching and fuse protection for compatible solar panel circuits. It is designed for use in solar PV systems where suitable circuit protection is required between the solar panels and the DC isolation switch.
Available Fuse Ratings
The PV fuse box can be supplied with the following fuse ratings:
Other fuse ratings may be available on request, subject to compatibility with the system design.
Application in Solar PV Systems
The fuse box is intended for use in compatible solar PV circuits. Correct fuse selection depends on the solar panel specifications, string arrangement, cable ratings and the electrical requirements of the system.
Important: The fuse rating and switching equipment must be suitable for the system’s DC voltage and current. Do not select a fuse solely by matching it to the solar panel’s nominal power rating.
Please confirm the required fuse rating and system compatibility before ordering. Dragons Breath Solar supplies solar equipment and technical product information but does not provide installation services.
This fits in between solar panels and DC isolation switch.
The Switch can be sent out c/w 8 Amps, 12A, 15A or 20A fuses, depending on your request. Fuses in our range are from 1A through to 20 Amp depending on your design. We must therefore ask you to select your design using the catalogue below.
PV fuse box assembly is inserted prior to PV fuse box dc cable Isolation switch
We can offer these now with or without MC4 cables for easy connection from PV panel strings.
Designed to hold the PV fuses safely and securely in one place.
Alternative PV cable assembly parts listed in picture below.
