Solar on roof rafter fixing kits supplied to match cement fiber and other corrugated roof timber framed buildings. FIXING CLAMPS ARE AVAILABLE IN BLACK OR SILVER ANODISED FINISH (PLEASE ADVISE). Find this Rafter solar panel fixing video to show installation instruction.
Timber solar fixing kits for corrugated Fibre Roof Portrait Fixing
Kits. Prices are listed below to attach quantities of
solar panels on wooden rafter beams in portrait orientations. Using the K2 rafter fixing screw system, these are set out in
rows of modules to match your requirements. These can be adjusted to achieve a
uniform spread across the roof line of your corrugated covering.

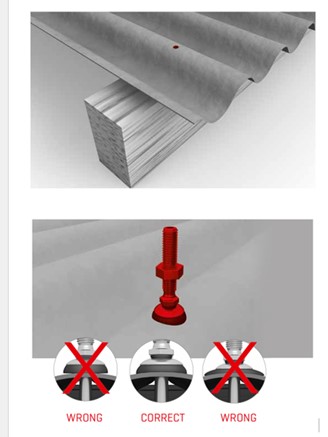

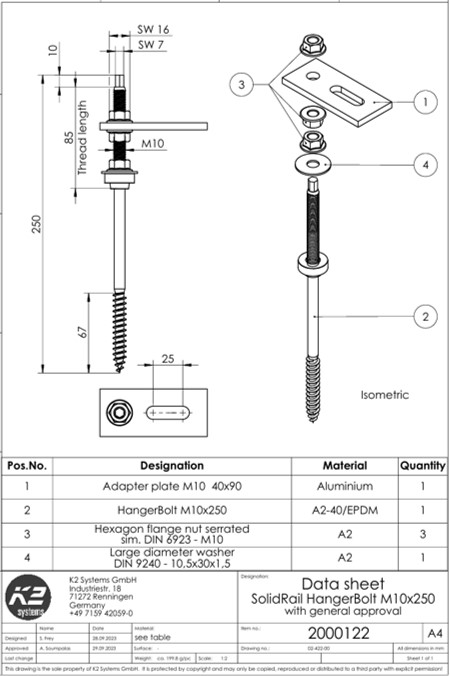

Solar on roof rafter fixing kits are supplied by us to match many cement fiber and other corrugated roof timber framed buildings. Woodscrew end of the stainless steel rafter fixing is positioned into a pre drilled pilot hole, this is screwed through the corrugated covering into the rafter timbers underneath. The other end has an M10 threaded portion to accept nuts and top plate assembly, which accept the solar panel rails.
Fully integrated PV fixing kit fit neatly onto the cement
fiber structure. Making it a seamless interaction with wooden rafter; once
fitted will provide watertight construction.
Available in various optional panel or kw sizes for
discerning statements, (ask for further details) a classic design with every
conceivable part required to complete the fixing part of your installation.
You can supply your own modules or we can offer our house
brand high quality products, with anti-reflective coating to increase light
absorption. 10-year product and 25-years performance guarantee. See our low
cost solar panels.
*Product prices listed below are for portrait solar fixing equipment parts only*
PLEASE ADVICE CLAMP SIZE TO MATCH YOUR SOLAR MODULES:
We offer rafter solar panel fixing kits based upon 400-450mm rafter spacings. If your roof is different, then please advise. As the amount of brackets could alter depending on the spacing.
Select photo below to view our complete range of solar panel fixing kits.
Data
Fixing arrangement example layout, for Standard and Extra Large size solar PV panels.

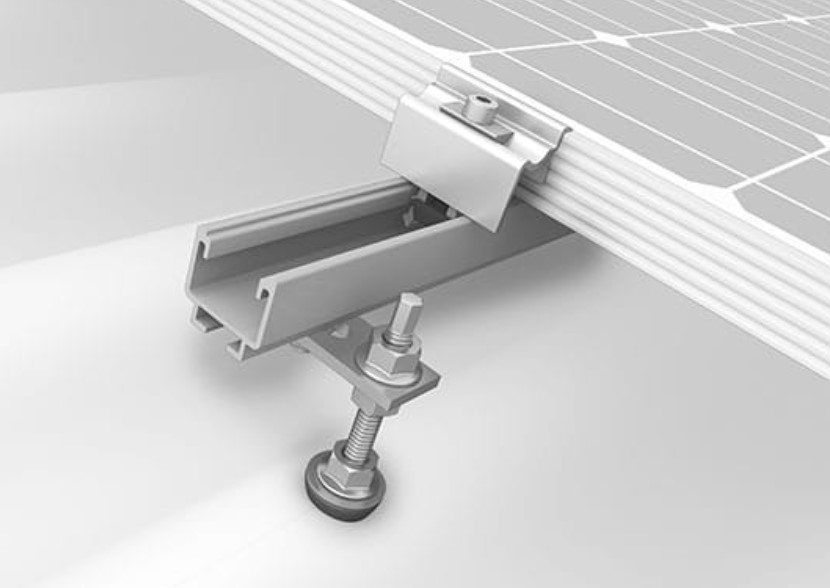

All of our wooden Rafter solar panel fixing kits contain these parts, to affix extra larger solar panels.
Timber Fixing Portrait
£96.06 – £620.15Price range: £96.06 through £620.15
Solar on roof rafter fixing kits supplied to match cement fiber and other corrugated roof timber framed buildings. FIXING CLAMPS ARE AVAILABLE IN BLACK OR SILVER ANODISED FINISH (PLEASE ADVISE). Find this Rafter solar panel fixing video to show installation instruction.
Dragons Breath Solar Fixings PV Panel Mounting Parts & Kits
Description
Timber solar fixing kits for corrugated Fibre Roof Portrait Fixing
Kits. Prices are listed below to attach quantities of
solar panels on wooden rafter beams in portrait orientations. Using the K2 rafter fixing screw system, these are set out in
rows of modules to match your requirements. These can be adjusted to achieve a
uniform spread across the roof line of your corrugated covering.
Solar on roof rafter fixing kits are supplied by us to match many cement fiber and other corrugated roof timber framed buildings. Woodscrew end of the stainless steel rafter fixing is positioned into a pre drilled pilot hole, this is screwed through the corrugated covering into the rafter timbers underneath. The other end has an M10 threaded portion to accept nuts and top plate assembly, which accept the solar panel rails.
Fully integrated PV fixing kit fit neatly onto the cement
fiber structure. Making it a seamless interaction with wooden rafter; once
fitted will provide watertight construction.
Parts included in this kit are as follows:
Available in various optional panel or kw sizes for
discerning statements, (ask for further details) a classic design with every
conceivable part required to complete the fixing part of your installation.
You can supply your own modules or we can offer our house
brand high quality products, with anti-reflective coating to increase light
absorption. 10-year product and 25-years performance guarantee. See our low
cost solar panels.
*Product prices listed below are for portrait solar fixing equipment parts only*
PLEASE ADVICE CLAMP SIZE TO MATCH YOUR SOLAR MODULES:
30-33mm, 34-36mm, 37-38mm, 39-41mm, 42-43mm, (44-50mm limited stock)
If you do not advise the size of solar panel clamps needed, we will send out universal 32-42mm
Timber solar fixing kits
in portrait to attach our purling solar kits, can be used as corrugated PV kits
Click on this link to see what is in the kit: Corrugated roof rafter fixing kits in portrait orientation
We offer rafter solar panel fixing kits based upon 400-450mm rafter spacings. If your roof is different, then please advise. As the amount of brackets could alter depending on the spacing.
Select photo below to view our complete range of solar panel fixing kits.
Data
Fixing arrangement example layout, for Standard and Extra Large size solar PV panels.
All of our wooden Rafter solar panel fixing kits contain these parts, to affix extra larger solar panels.
Wooden Rafter tile bracket numbers guide with rafter spacing @ 450mm between timbers.
1 panel kit x 1 row RAFTER PORTRAIT roof fixing kit: = 4 brackets + 4 T bolts + 4 nuts + 1 rail @ 2.5m + 4 rail end caps + 4 universal end clamps + 4 cable tidy clips + 4 cable ties.
1 panel kit x 1 row RAFTER LANDSCAPE roof fixing kit: = 5 brackets + 5 T bolts + 5 nuts + 2 rails @ 2.5m + 4 rail end caps + 4 universal end clamps + 4 cable tidy clips + 4 cable ties.
2 panel kit x 1 row RAFTER PORTRAITE roof fixing kit: = 7 brackets + 7 T bolts + 7 nuts + 2 rails @ 2.5m + 4 rail end caps + 4 universal end clamps + 2 universal mid clamps + 8 cable tidy clips + 8 cable ties.
2 panel kit x 1 row RAFTER LANDSCAPE roof fixing kit: = 8 brackets + 8 T bolts + 8 nuts + 2 rails @ 2.5m + 2 rails @ 3.65m + 2 rail connectors + 4 rail end caps + 4 universal end clamps + 2 universal mid clamps + 8 cable tidy clips + 8 cable ties.
3 panel x 1 row RAFTER PORTRAIT roof fixing kit: = 11 brackets + 11 T bolts + 11 nuts + 2 rails @ 3.65m + 4 rail end caps + 4 universal end clamps + 4 universal mid clamps + 12 cable tidy clips + 12 cable ties.
3 panel x 1 row RAFTER LANDSCAPE roof fixing kit: = 12 brackets + 12 T bolts + 12 nuts + 4 rails @ 3.65m + 2 rail connectors + 4 rail end caps + 4 universal end clamps + 4 universal mid clamps + 12 cable tidy clips + 12 cable ties.
4 panel x 1 row RAFTER PORTRAIT roof fixing kit: = 14 brackets + 14 T bolts + 14 nuts + 4 rails @ 2.5m + 2 rail connectors + 4 rail end caps + 4 universal end clamps + 6 universal mid clamps + 16 cable tidy clips + 16 cable ties.
5 panel x 1 row RAFTER PORTRAIT roof fixing kit: = 15 brackets + 15 T bolts + 15 nuts + 2 rails @ 3.65m + 2 rails @ 2.5m + 4 rail connectors + 4 rail end caps + 4 universal end clamps + 8 universal mid clamps + 20 cable tidy clips + 20 cable ties.
6 panel x 1 row RAFTER PORTRAIT roof fixing kit: = 18 brackets + 18 T bolts + 18 nuts + 4 rails @ 3.65m + 4 rail connectors + 4 rail end caps + 4 universal end clamps + 10 universal mid clamps + 24 cable tidy clips + 24 cable ties.
6 panel x 2 rows RAFTER PORTRAIT roof fixing kit: = 22 brackets + 22 T bolts + 22 nuts + 4 rails @ 3.65m + 4 rail connectors + 8 rail end caps + 8 universal end clamps + 8 universal mid clamps + 24 cable tidy clips + 24 cable ties .
7 panel x 1 row RAFTER PORTRAIT roof fixing kit: = 23 brackets + 23 T bolts + 23 nuts + 4 rails @ 2.5m + 2 rails @ 3.65m + 4 rail connectors + 4 rail end caps + 4 universal end clamps + 12 universal mid clamps + 28 cable tidy clips + 28 cable ties.
8 panel x 1 row RAFTER PORTRAIT roof fixing kit: = 25 brackets + 25 T bolts + 25 nuts + 8 rails @ 2.5m + 6 rail connectors + 4 rail end caps + 4 universal end clamps + 14 universal mid clamps + 32 cable tidy clips + 32 cable ties.
8 panel x 2 rows RAFTER PORTRAIT roof fixing kit: = 28 brackets + 28 T bolts + 28 nuts + 8 rails @ 2.5m + 4 rail connectors + 8 rail end caps + 8 universal end clamps + 12 universal mid clamps + 32 cable tidy clips + 4 cable ties
9 panel x 1 row RAFTER PORTRAIT roof fixing kit: = 27 brackets + 27 T bolts + 27 nuts + 6 rails @ 3.65m + 6 rail connectors + 4 rail end caps + 4 universal end clamps + 16 universal mid clamps + 36 cable tidy clips + 36 cable ties.
10 panel x 2 rows RAFTER PORTRAIT roof fixing kit: = 32 brackets + 32 T bolts + 32 nuts + 4 rails @ 3.65m + 2 rails @ 2.5m + 8 rail connectors + 8 rail end caps + 8 universal end clamps + 16 universal mid clamps + 40 cable tidy clips + 40 cable ties.
12 panel x 2 rows RAFTER PORTRAIT roof fixing kit: = 36 brackets + 36 T bolts + 36 nuts + 8 rails @ 3.65m + 6 rail connectors + 8 rail end caps + 8 universal end clamps + 20 universal mid clamps + 48 cable tidy clips + 48 cable ties.
14 panel x 2 rows RAFTER PORTRAIT roof fixing kit: = 38 brackets + 38 T bolts + 38 nuts + 8 rails @ 3.65m + 4 rails @ 2.5m + 8 rail connectors + 8 rail end caps + 8 universal end clamps + 24 universal mid clamps + 56 cable tidy clips + 56 cable ties.
16 panel x 2 rows RAFTER PORTRAIT roof fixing kit: = 46 brackets + 46 T bolts + 46 nuts + 8 rails @ 3.65m + 4 rails @ 2.5m + 8 rail connectors + 8 rail end caps + 8 universal end clamps + 28 universal mid clamps + 64 cable tidy clips + 64 cable ties.
