22mm copper tube to DN16 connection designed for high-pressure solar thermal pipework. The flat-faced fitting provides a sealed connection between 22mm copper tube and compatible DN16 flexible stainless steel corrugated tube, using a fibre washer at the flat-face connection.

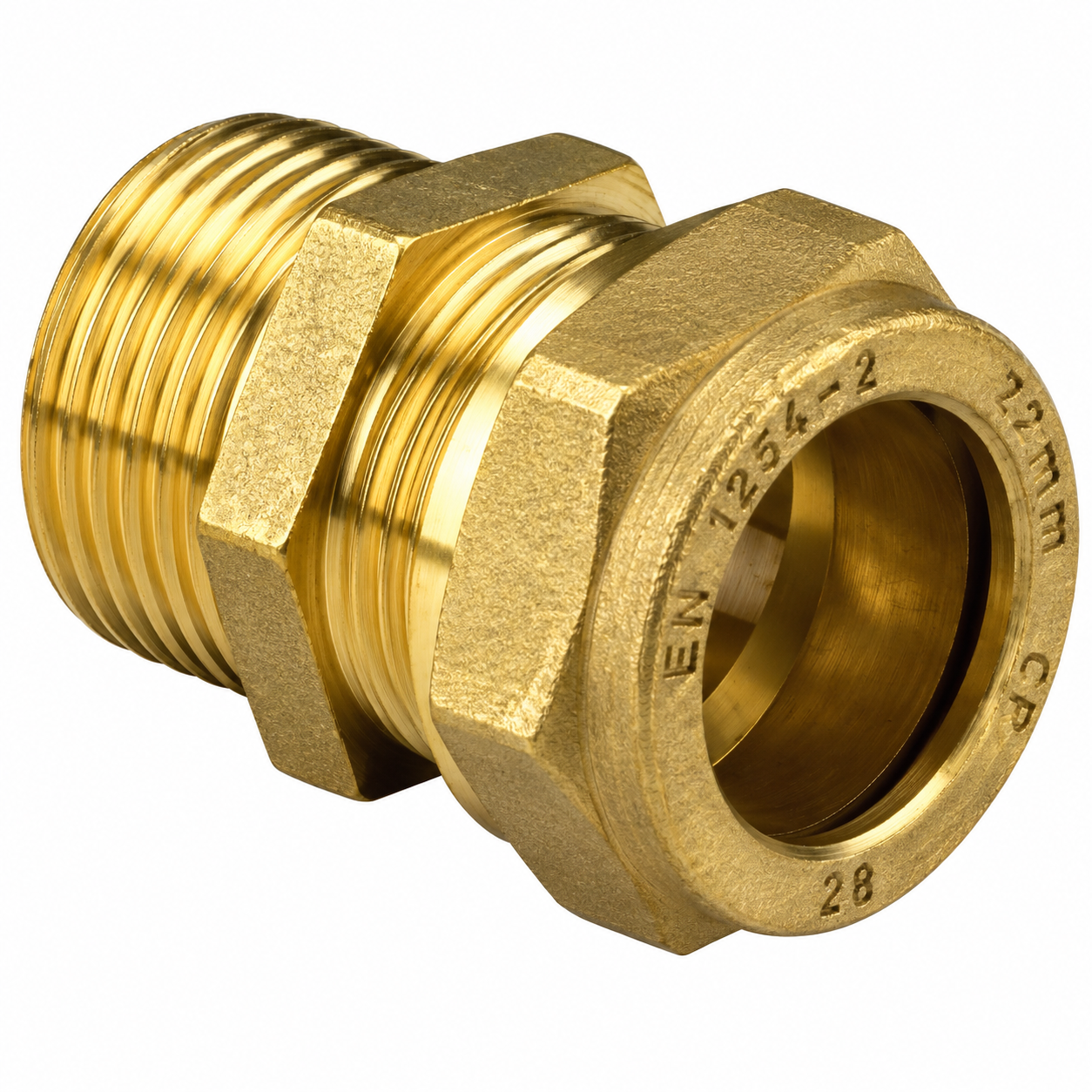

22mm x 3/4″ male compression DN16 flat faced male threaded connector.
This is a flat surfaced fitting specially machined to accept fiber washers, to prevent pressure drops in sealed fittings.
This is designed for use with high pressure solar heating pipe work with DN16 to 22mm copper tube connections.
We also suggest you use the 22mm copper tube insert:
22mm / DN16 solar hot water tube fitting is to connect copper tube via compression, onto a flat faced connection that will enable abutment of stainless steel corrugated tube. This will provide a safe and permanent joint to make the junction between these dissimilar materials. Optional extras follow this link: Solar hot water spares
22mm x male
£10.48
22mm x Male Solar Connector
22mm copper tube to DN16 connection designed for high-pressure solar thermal pipework. The flat-faced fitting provides a sealed connection between 22mm copper tube and compatible DN16 flexible stainless steel corrugated tube, using a fibre washer at the flat-face connection.
Description
22mm x 3/4″ male compression DN16 flat faced male threaded connector.
This is a flat surfaced fitting specially machined to accept fiber washers, to prevent pressure drops in sealed fittings.
This is designed for use with high pressure solar heating pipe work with DN16 to 22mm copper tube connections.
We also suggest you use the 22mm copper tube insert:
22mm / DN16 solar hot water tube fitting is to connect copper tube via compression, onto a flat faced connection that will enable abutment of stainless steel corrugated tube. This will provide a safe and permanent joint to make the junction between these dissimilar materials. Optional extras follow this link: Solar hot water spares
