Description

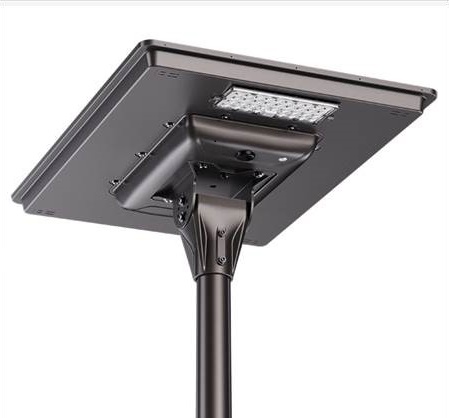

All-in-One Solar Walkway Light – High-Performance LED Lighting
The Dragons Breath Solar Walkway Light is an all-in-one solar lighting system designed for pedestrian walkways and outdoor areas with moderate footfall. It provides solar-powered illumination where a mains electricity supply may be unavailable or impractical.
High-Performance Solar Lighting
The system combines an LED luminaire, a high-capacity 30Ah lithium-ion battery and an extra-large solar panel. The larger panel is designed to collect more solar energy to help support the light’s operation.
The solar panel can be orientated to maximise exposure to sunlight. For UK installations, positioning the panel towards the south may help improve solar energy collection, subject to the site’s layout and shading.
Intelligent PIR Sensor Control

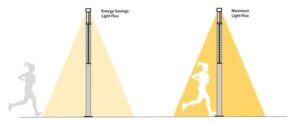

The light operates at 30% background illumination until its PIR sensor detects a pedestrian. It then increases to 100% illumination for one minute or until the pedestrian leaves the sensor’s detection area.
This operating mode provides additional light when movement is detected while helping manage battery energy.
Suitable Applications and Mounting
This solar walkway lighting system may be suitable for:
- Pedestrian paths and walkways
- Car parks and access areas
- Outdoor locations away from mains electricity
- Sites requiring solar-powered lighting with reduced routine intervention

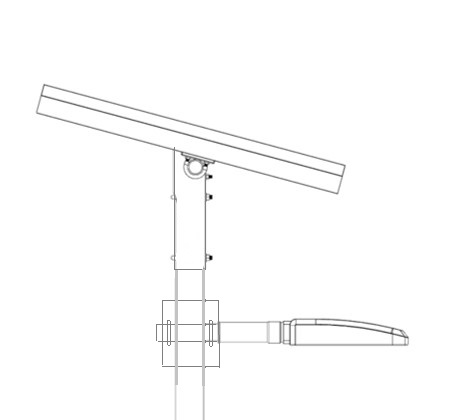

The luminaire is designed for mounting on a suitable post or column. The original product information specifies columns measuring 76–114mm in diameter and a mounting height of approximately 4–5m above ground. Confirm compatibility with the intended column and mounting arrangement before ordering.
The battery and control system are housed within the unit, helping protect these components from exposure and interference.
Dragons Breath Solar supplies solar lighting equipment and technical product information. We do not provide installation services.
Ideal for all year around seasonal uses. All in one lighting unit making this solar walkway lighting unit neatly sit as a lamp post. Once turned on, the program of this lighting system will not require any further maintenance or management. The lithium battery pack and control system are housed inside lamp post unit to protect from vandalism. Would suit any location far away from mains power supply that need high performance LED lighting power during longer days.
Solar walkway lighting for pedestrian paths and green areas. The product has a wrap around monocrystalline solar panel, which delivers generated energy into lithium battery pack.
Delivers illumination via extra low voltage class III system.
- Height @ 4-5m
- Solar PV panels 125w @ 18v
- Battery capacity @ 30Ah
- Luminary @ 15-20w
- 5 years warrenty

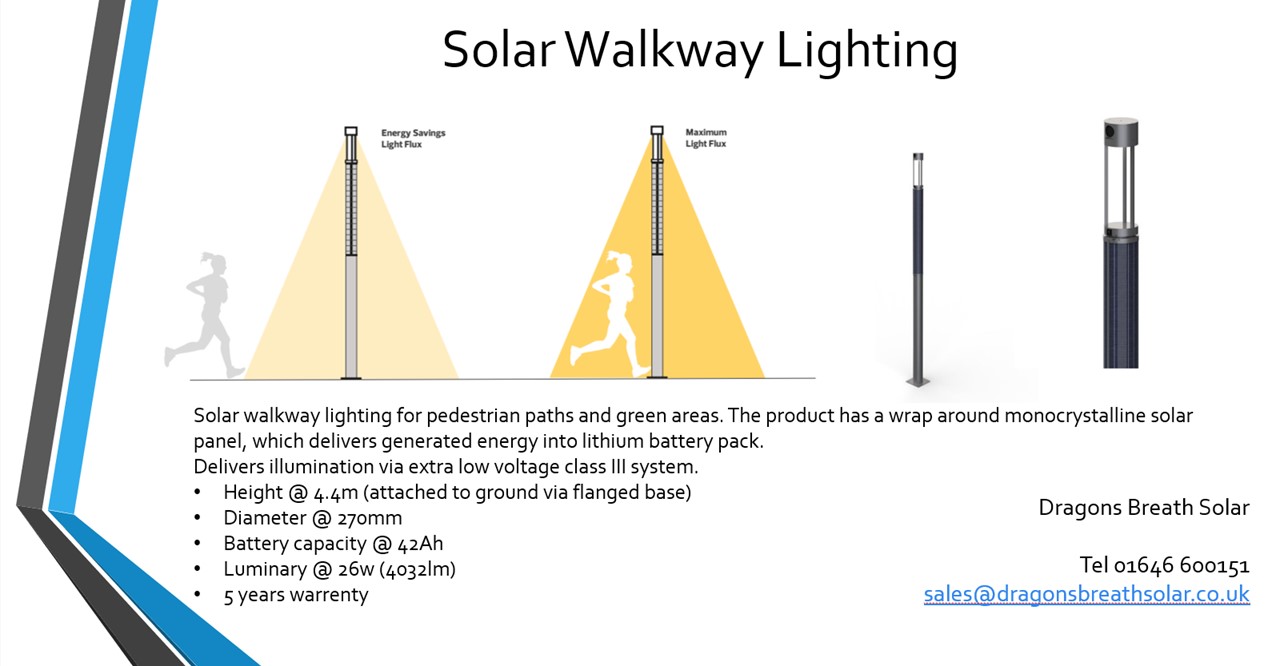

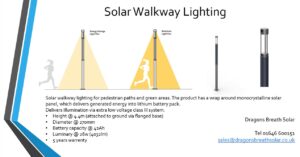

Click on link below to view large walkway PDF specification
- Link to posts: 60mm Street light post posts to suit solar walkway light (small)
Note : For areas with a lower footfall you can check out our smaller Solar Walkway Lights
Link to all solar lighting systems:
- Use this link to view all Dragons Breath Solar Powered Street Lights | Solar Street & Car Park Lamps
