£96.50–£1,585.00Price range: £96.50 through £1,585.00

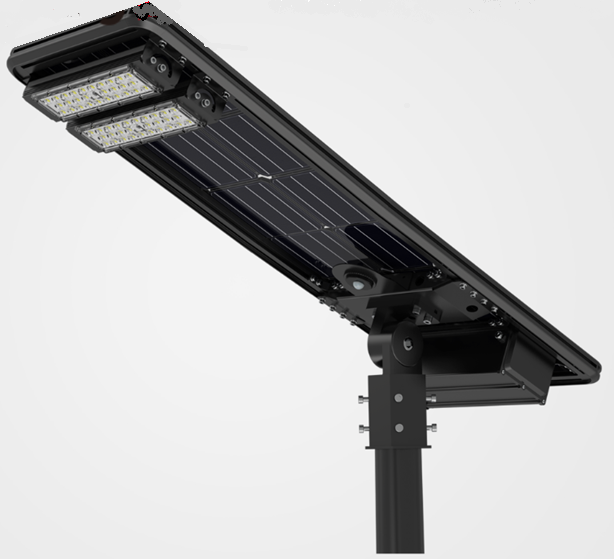

This unique solar community street light offers a bifacial solar panel to attract energy from top and bottom of the PV panel. It easily affixes onto top of posts for rural illumination requirements.
This style of lighting system can be used to illuminate village walkways. These are manufactured for use in the
UK. They can slot over existing lamp posts of 60-76mm. We can offer an adaptor if your lamp post was a larger 89mm diameter.
The 20w or 100w high performance LED bulbs used in this product are designed to last 40,000 hours, or ten
years without any maintenance cost being incurred. The heights that our deluxe units can be positioned between 4m and 5 meters above ground. These can help to provide amenity light at sunset till the sun rises at dawn. This units allows the owner to change battery or controller when needed. An easy maintenance schedule for the future.
Always ask for the products that match your post requirements.
The Dragons Breath Solar community lighting system ref: DBS180D is a single directional unit. This is designed so that the lithium battery and controller can be easily changed when required or at the end of serviceable life. Ideal for locations where mains power supplies do not exist. Which is where this slot over top of post design allows the installer a simple task. This solar light slots over 76 or 89mm post. Once switched on using just one button, will start to generate power through its solar engine into lithium batteries for uses when required. This solar lighting system provides the user an instant option of power. This solar light unit can be fixed permanently onto new or existing columns of 4-5m above ground and around 10m apart, this easy assembled unit will allow the installer to finish installation in under 10 minutes. The LED lighting unit then positioned to suit locational needs. A permanent fixture using stainless steel mechanical screws. The solar panel should be angle mounted in its pedestal, to face South pointing towards the Sun’s azimuth. While in the Northen hemisphere. The LED light units can then be rotated to illuminate the required area.
We provide this DBS180D solar powered lighting system in two sizes with 4000-5000k @ offering 4,000-8,000 lumens. This type of light unit is classed as a one piece manufactured from aluminum and tested to IP65. This system has been designed to provide optimum output measured against locations up and down the country.
Using high performance Bridgelux LED chip sets, powered by a li-ion (LiFePo4) battery pack to provide up to 3 days autonomy. Electronic MPPT controllers deliver power to the LED’s using photocell technology to detect pedestrian and vehicular movement. Providing background illumination from dusk. The function of the controller is to deliver power to LED luminary when needed. this will then trigger the controller to power from 30% up to 100% for 1 minute or until outside of sensor ranges of 10m. The light units should be affixed at 4-5m above ground allowing the solar panel to point near to south as possible. Each product has 5 years warranty.
Community Street Light Standard Working Mode:
1st hour @ 100%
2nd hour @ 80%
3-4th hour @ 60%
Till dawn = background 25% until dawn, sensor operated
Community Street Light High Performance specification
120w bifacial solar panel
20w LED output @ 170lm/w
615Wh Li-ion battery
Programed 1H100% 2-3H80% 4H60% 5H-dawn 25%
Weight @ 40kg
Socket to suit 76mm diameter top of post
Additional item needed to fix this light unit onto top of 89mm post: 89mm – 76mm socket adaptor
The LM output of this deluxe LED lighting product is 2000lm with a color temperature of 3,500K. This provides a cool white LED light source. The lights can be spaced as required to provide an adequate amenity light source. These provide illumination that would normally be around 15-20m circumference. This light has been designed with an extra large sized solar panel for increased longer night time performance.
solar panel produces electrical power when the available sun light at location can shine adequately onto the solar panel surface.
These take approximately 1 hour to assemble and fix into place, the fitting to column should be undertaken via a cherry picker or similar tower type scaffold system. Once fitted and connected to columns, the solar panel system will not only be fully automatic. But also reduce maintenance time dramatically to zero compared to the existing annual tasks of traditional sodium bulbs. If you require a lamp post then a small concrete foundation base is required to secure new lamp posts.
These lights are designed so that they can be easily connected to existing parish lamp posts to enable an easy lighting solution. These are ideal for security installations. Ask for more free details if a self installation process is desired. Part of our exclusive DBS Range of Solar Street Lights
DBS180D Community Solar light
system information.
DBS180D is our specially sized solar panel retro clamp or slot over lighting system, for many uses in the UK.
This incorporates a larger battery for greater performance
Price at the top of this page is for slot on solar light DBS180D
We offer this product in good faith that it is intended for self installation
The specification is determined to provide lighting based on localized conditions
Please advice details if you are unsure
We can then provide you with information by return regarding suitability
£845.00–£1,950.00Price range: £845.00 through £1,950.00Select options
This product has multiple variants. The options may be chosen on the product page
Solar Comunity Street Light
£96.50 – £1,585.00Price range: £96.50 through £1,585.00
This unique solar community street light offers a bifacial solar panel to attract energy from top and bottom of the PV panel. It easily affixes onto top of posts for rural illumination requirements.
Description
Deluxe DBS170/180D Community Solar light
This style of lighting system can be used to illuminate village walkways. These are manufactured for use in the
UK. They can slot over existing lamp posts of 60-76mm. We can offer an adaptor if your lamp post was a larger 89mm diameter.
The 20w or 100w high performance LED bulbs used in this product are designed to last 40,000 hours, or ten
years without any maintenance cost being incurred. The heights that our deluxe units can be positioned between 4m and 5 meters above ground. These can help to provide amenity light at sunset till the sun rises at dawn. This units allows the owner to change battery or controller when needed. An easy maintenance schedule for the future.

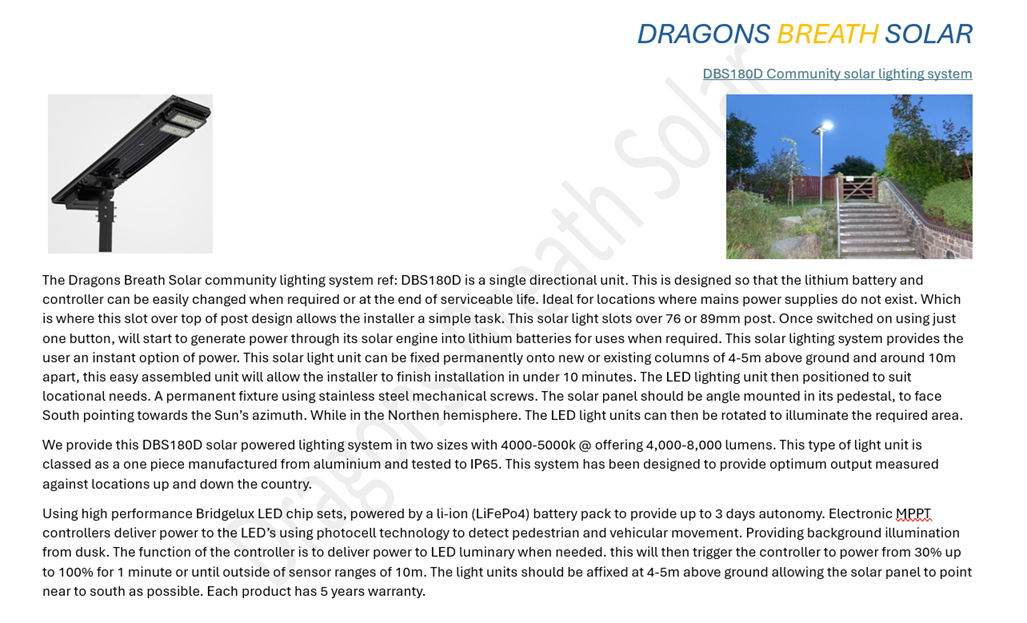

DBS 180 PDF: DRAGONS BREATH SOLAR 180D community solar lighting system
Always ask for the products that match your post requirements.
The Dragons Breath Solar community lighting system ref: DBS180D is a single directional unit. This is designed so that the lithium battery and controller can be easily changed when required or at the end of serviceable life. Ideal for locations where mains power supplies do not exist. Which is where this slot over top of post design allows the installer a simple task. This solar light slots over 76 or 89mm post. Once switched on using just one button, will start to generate power through its solar engine into lithium batteries for uses when required. This solar lighting system provides the user an instant option of power. This solar light unit can be fixed permanently onto new or existing columns of 4-5m above ground and around 10m apart, this easy assembled unit will allow the installer to finish installation in under 10 minutes. The LED lighting unit then positioned to suit locational needs. A permanent fixture using stainless steel mechanical screws. The solar panel should be angle mounted in its pedestal, to face South pointing towards the Sun’s azimuth. While in the Northen hemisphere. The LED light units can then be rotated to illuminate the required area.
We provide this DBS180D solar powered lighting system in two sizes with 4000-5000k @ offering 4,000-8,000 lumens. This type of light unit is classed as a one piece manufactured from aluminum and tested to IP65. This system has been designed to provide optimum output measured against locations up and down the country.
Using high performance Bridgelux LED chip sets, powered by a li-ion (LiFePo4) battery pack to provide up to 3 days autonomy. Electronic MPPT controllers deliver power to the LED’s using photocell technology to detect pedestrian and vehicular movement. Providing background illumination from dusk. The function of the controller is to deliver power to LED luminary when needed. this will then trigger the controller to power from 30% up to 100% for 1 minute or until outside of sensor ranges of 10m. The light units should be affixed at 4-5m above ground allowing the solar panel to point near to south as possible. Each product has 5 years warranty.
Community Street Light Standard Working Mode:
Additional item needed to fix this light unit onto top of 89mm post:89mm – 60mm socket adaptor
Community Street Light High Performance specification
Additional item needed to fix this light unit onto top of 89mm post: 89mm – 76mm socket adaptor
The LM output of this deluxe LED lighting product is 2000lm with a color temperature of 3,500K. This provides a cool white LED light source. The lights can be spaced as required to provide an adequate amenity light source. These provide illumination that would normally be around 15-20m circumference. This light has been designed with an extra large sized solar panel for increased longer night time performance.
solar panel produces electrical power when the available sun light at location can shine adequately onto the solar panel surface.
These take approximately 1 hour to assemble and fix into place, the fitting to column should be undertaken via a cherry picker or similar tower type scaffold system. Once fitted and connected to columns, the solar panel system will not only be fully automatic. But also reduce maintenance time dramatically to zero compared to the existing annual tasks of traditional sodium bulbs. If you require a lamp post then a small concrete foundation base is required to secure new lamp posts.
These lights are designed so that they can be easily connected to existing parish lamp posts to enable an easy lighting solution. These are ideal for security installations. Ask for more free details if a self installation process is desired. Part of our exclusive DBS Range of Solar Street Lights
DBS180D Community Solar light
system information.
